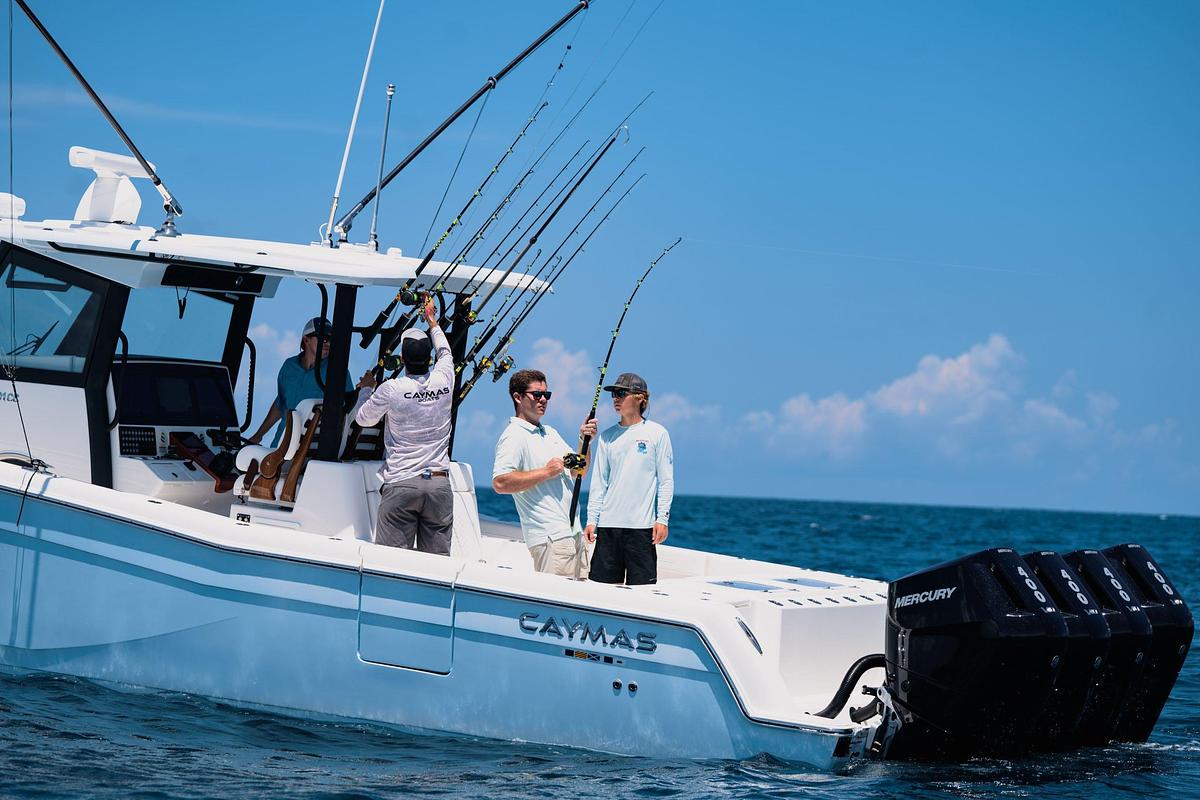

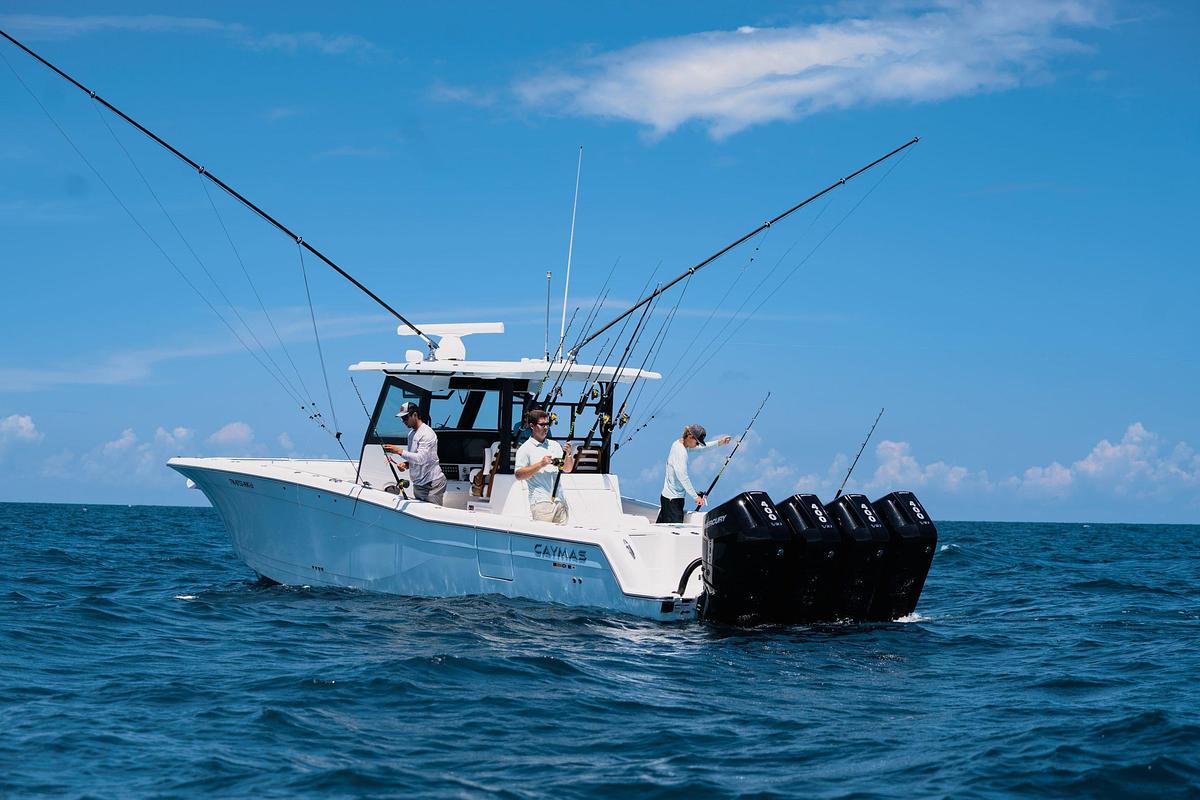

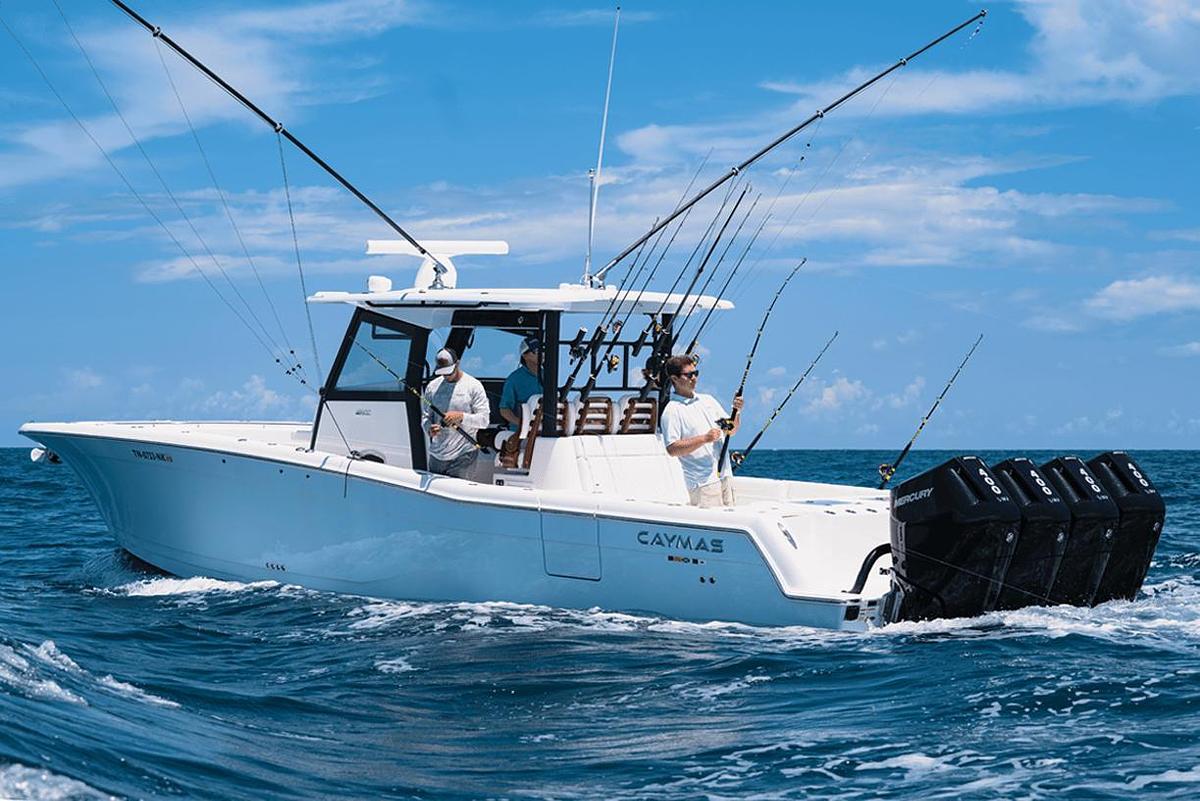

The Caymas 401 CC is designed for serious saltwater tournament anglers as well as discriminating weekend fishermen and their families. Like all Caymas saltwater models, it features the patented Stepped Vee Ventilated Tunnel (SVVT) hull.

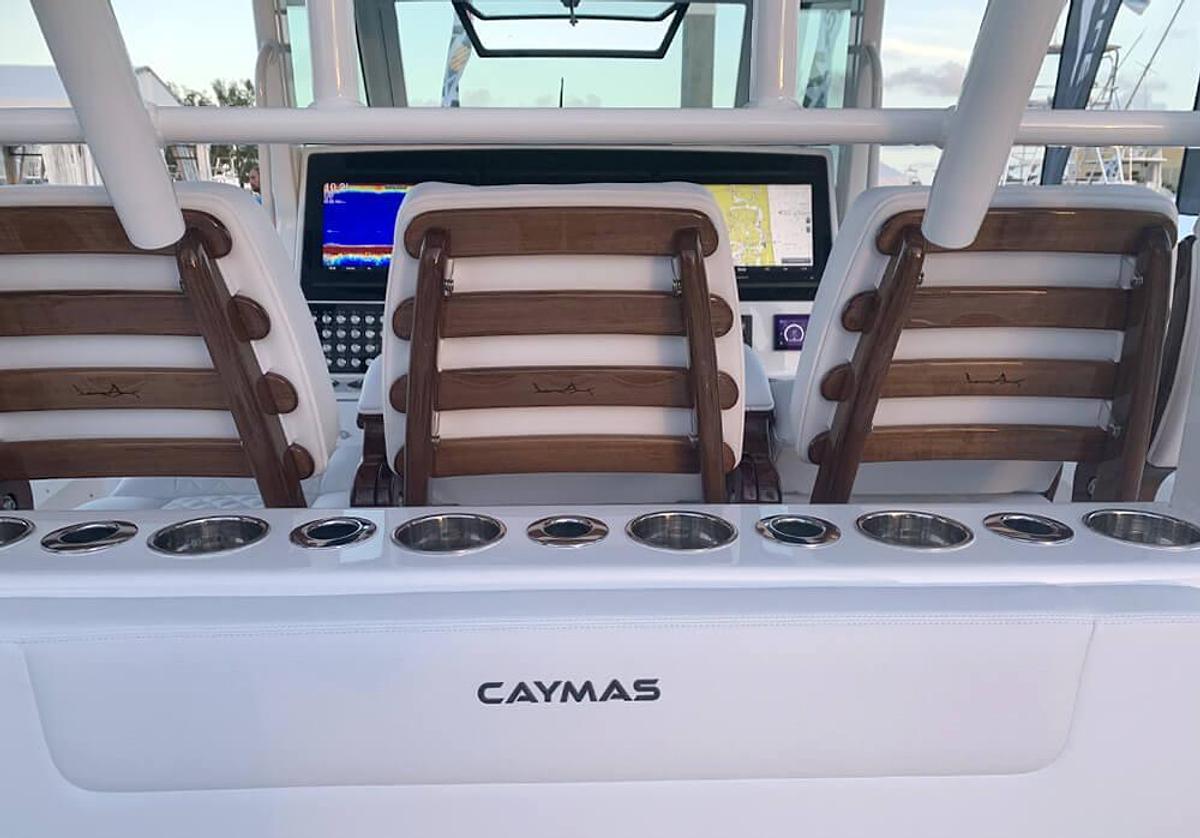

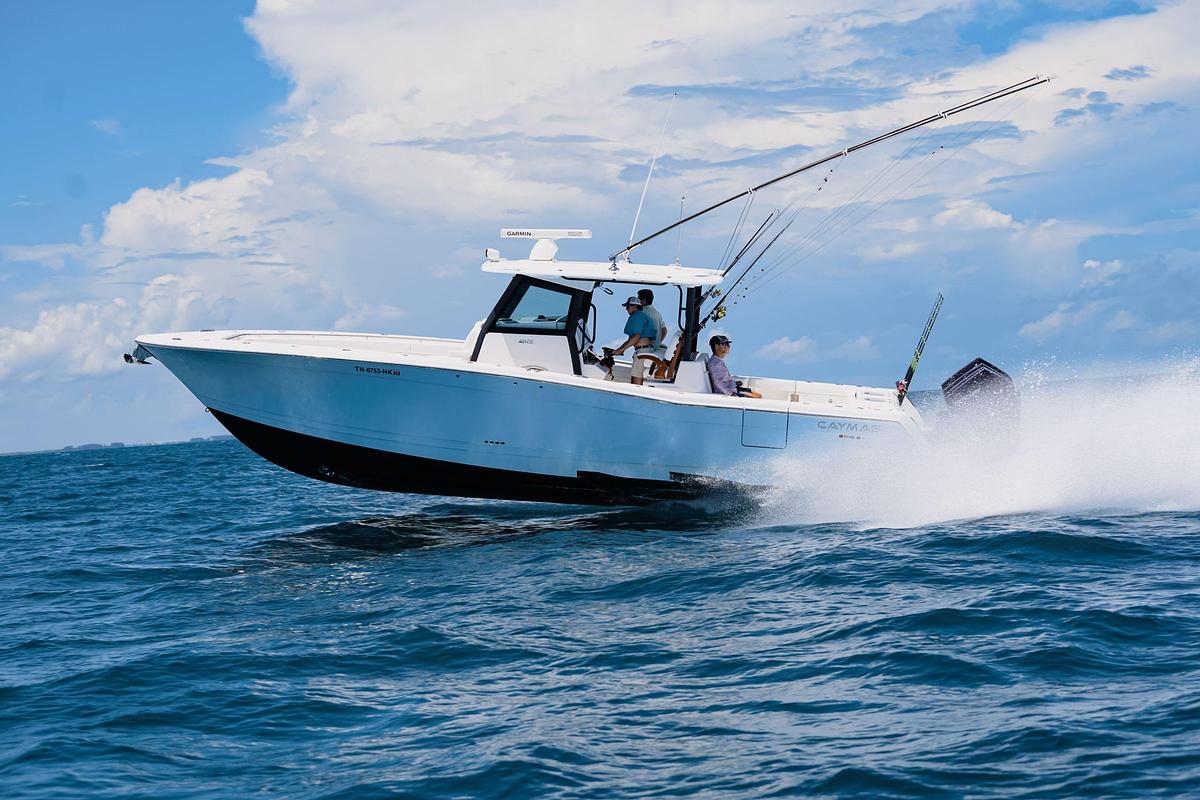

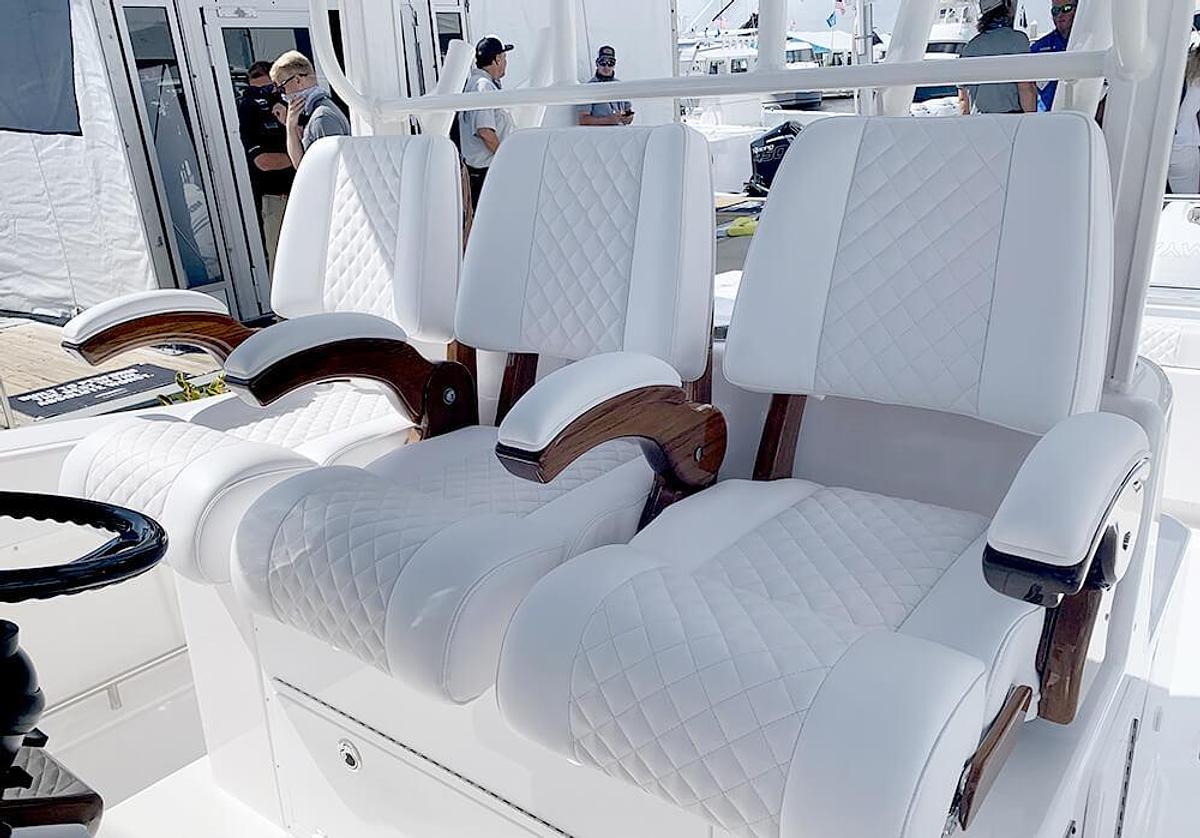

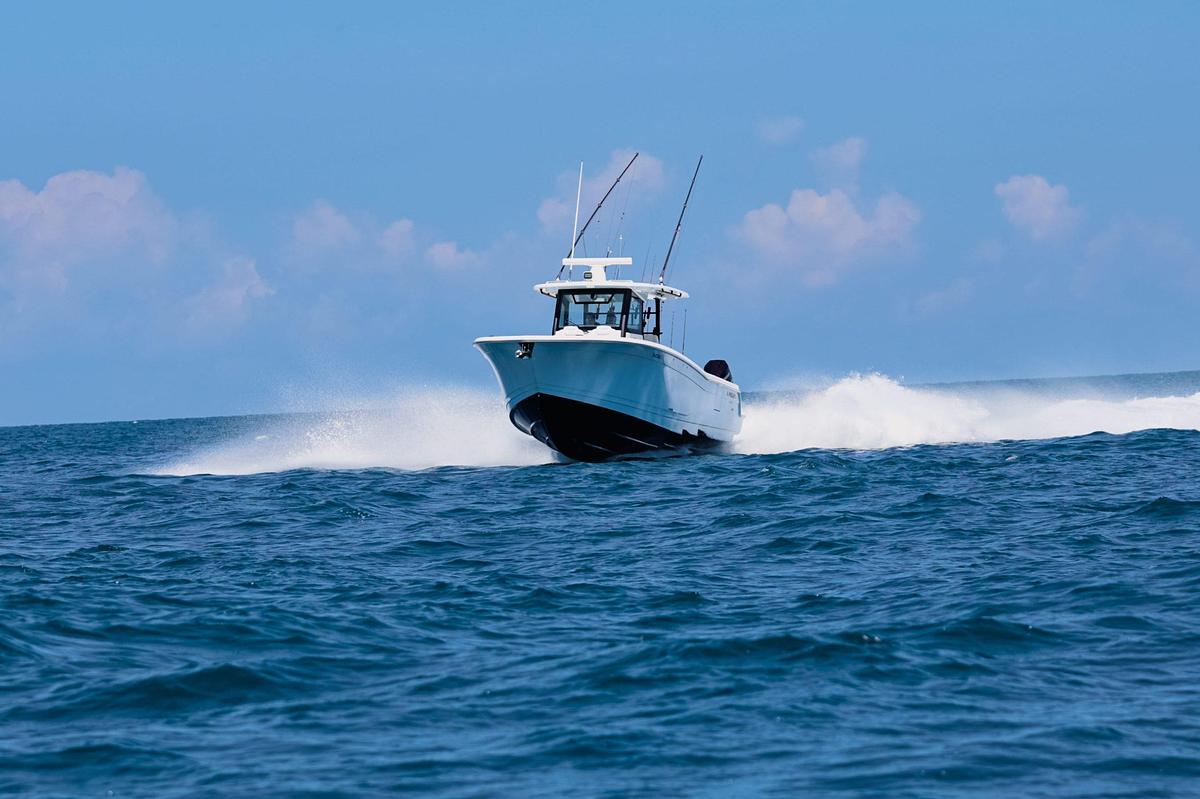

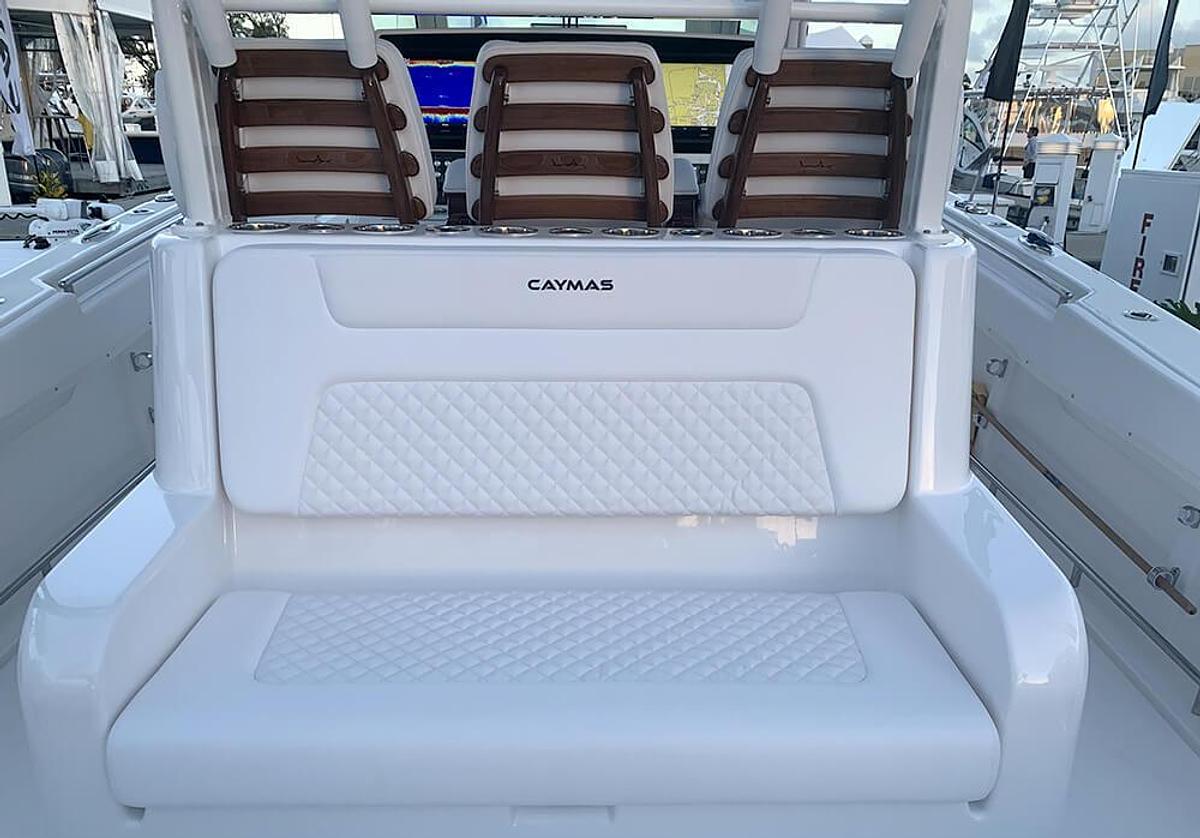

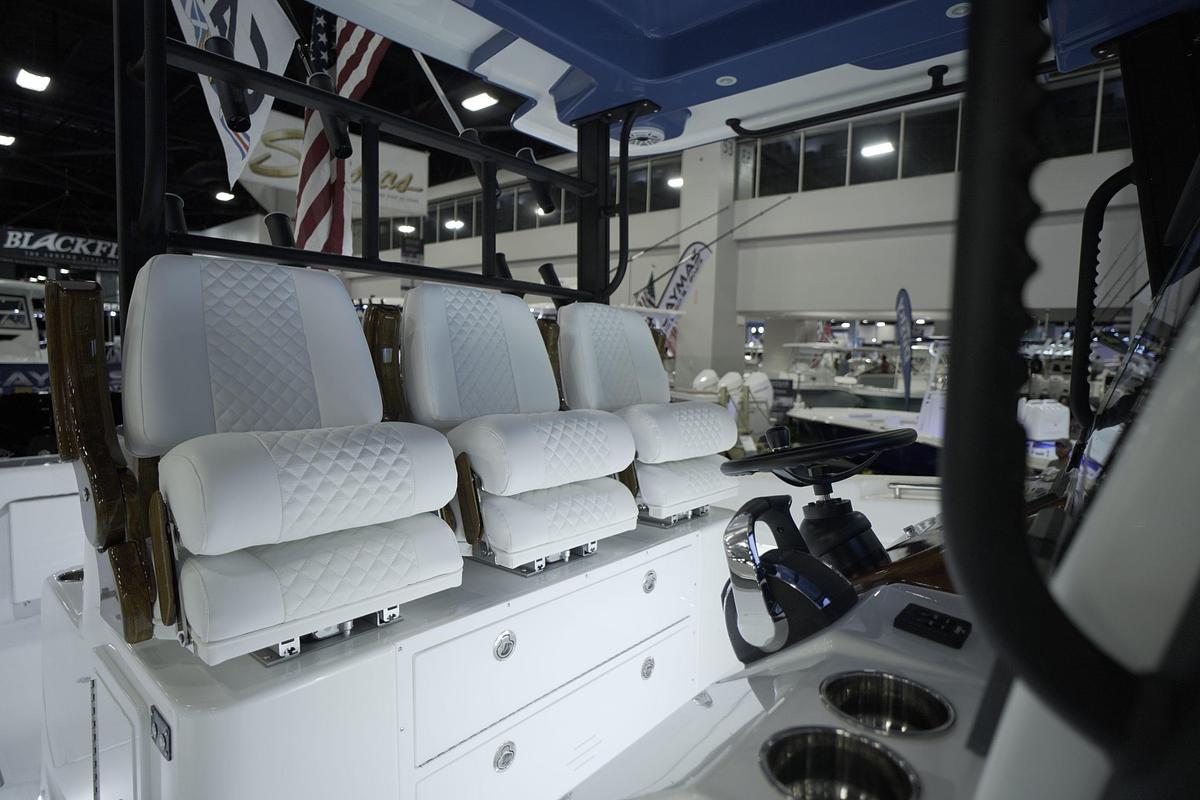

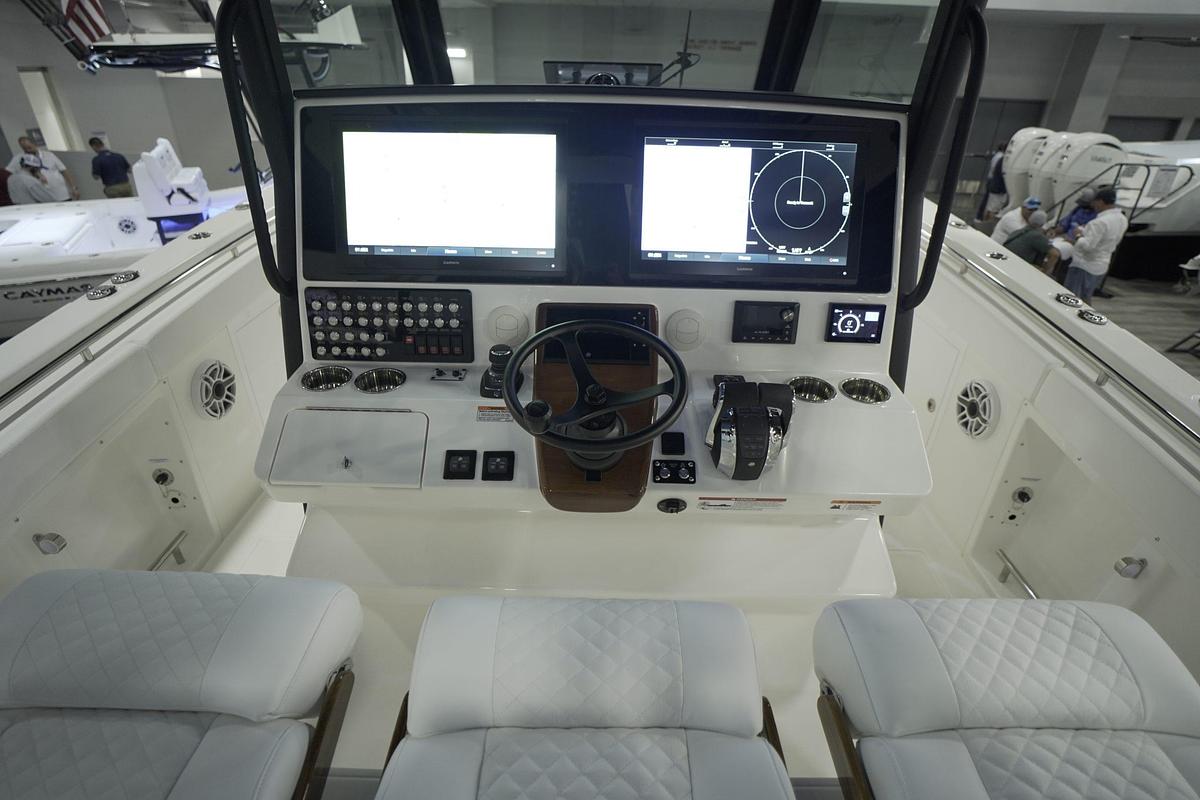

Designed by Michael Peters, this revolutionary drag-reducing hull increases speed, enhances fuel economy, and delivers a remarkably soft, dry ride in heavy seas. Hard-core anglers will appreciate the 401 CC’s innovative features: a massive cockpit with optional port and starboard dive doors provides ample space to fish. The leaning post offers abundant rod and tackle storage, along with rear-facing mezzanine seating for cruising or watching baits. Twin 45-gallon transom livewells feature premium Hooker Electric pumps and sea chest. Five fish boxes provide over 450 gallons of insulated storage for your big hauls. Lockable rod storage provides security for expensive tackle. An elevated helm station with three helm seats provides maximum visibility for safer cruising. The dash accommodates three 17” displays or dual 22” displays, along with extra room for additional electronics.

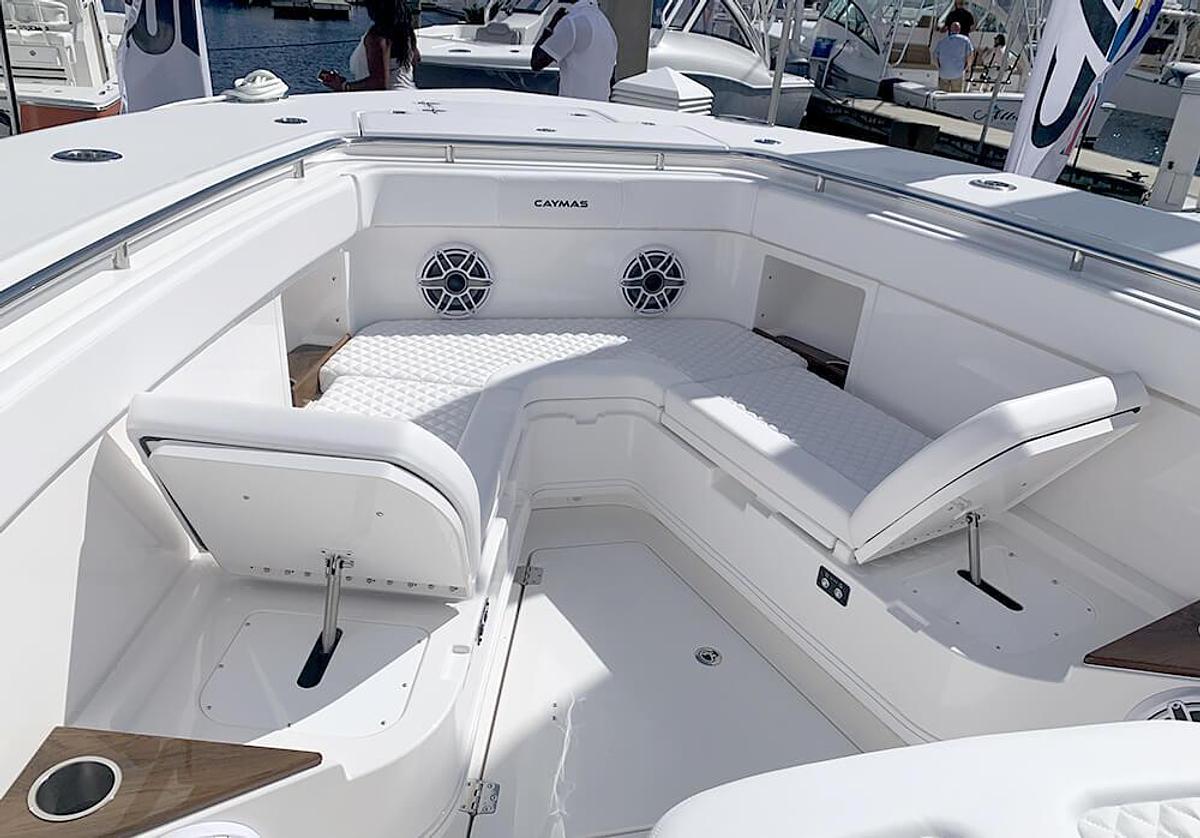

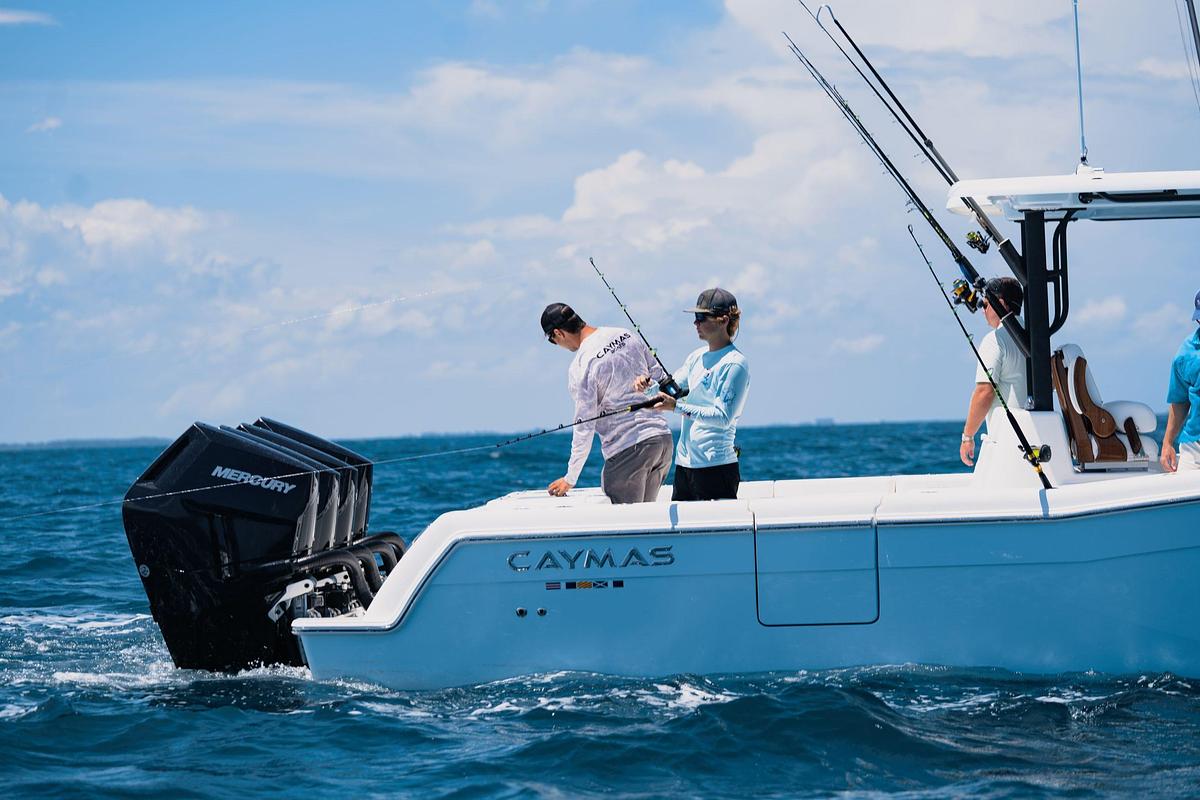

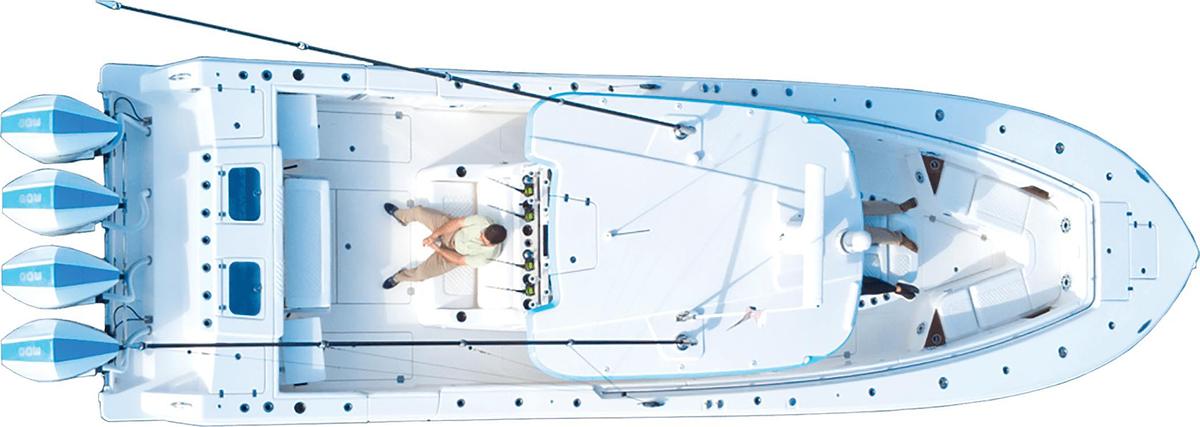

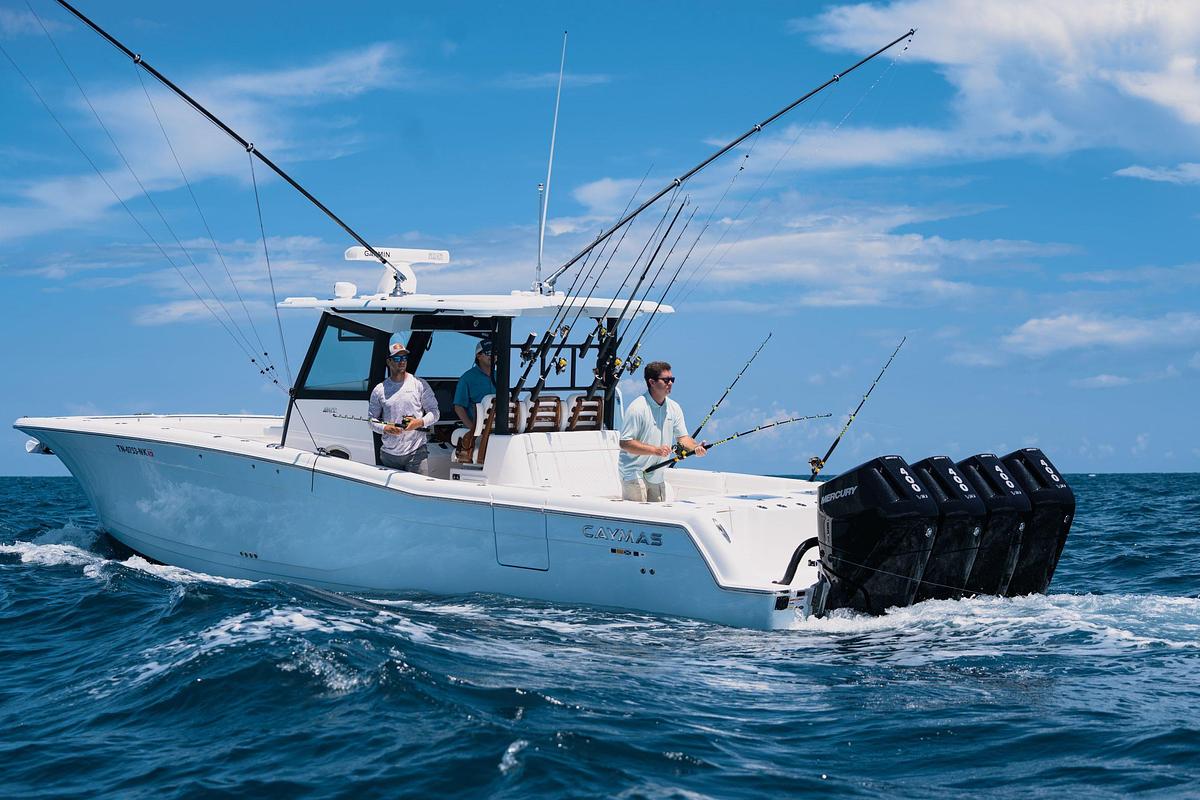

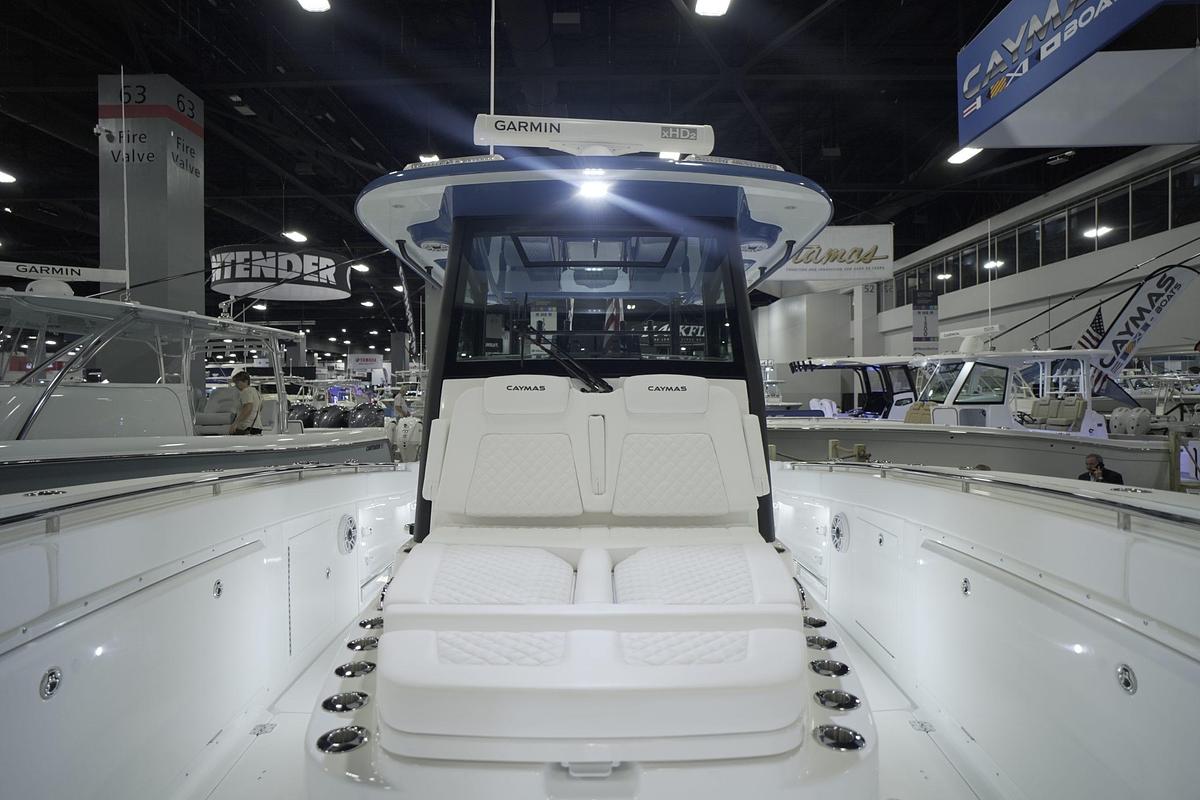

An innovative hardtop features a pass-through hatch, allowing easy access to an optional second station without compromising traditional rod holder placement and storage. With its 11’ 6” beam, the 401 CC also provides a welcoming environment for family and friends. Guests will enjoy an enclosed head inside the cabin, along with a berth for an overnight stay or additional storage. The forward chaise lounge houses 75 gallons of dry storage plus a 15-gallon insulated cooler, creating a relaxing social center while cruising or enjoying the sunset. Multiple seating options are available for the boat’s massive bow. Triple or quad engine configurations are available up to 1800 horsepower, in addition to options for a SeaKeeper 3, a diesel generator, and air conditioning.
BOAT SYSTEMS
Pressurized transom Livewells with Custom Caymas acrylic lid, dual fill with adjustable drain and overflow, painted blueHooker® SeaChest live well system: (2) 2500 GPH variable speed Hooker® pumps and helm control knobs with custom high-speed pickups port & starboardWindless with Custom anchor and bow rollerCustom Fuel manifold valve system above deck for easy access and operation7″ digital engine gauge for engine packagePush button start for engine ignitionElectric trim tabs with LED control at helm stationStainless steel Push-button switches with Custom backlit acrylic panelBattery chargers located in leaning post and consoleBattery distribution panel in leaning post with remote Battery switches and charging relaysCircuit breaker protected tinned wiring and Custom panel with ignition key switches inside consoleLED anchor light and navigation lights Integrated into hard topLED cockpit courtesy lightsLED interior console lightsLED compartment lightsLED livewell lightsLED under gunnel lightsAft (3) 1500 GPH bilge pumps connected to automatic float switches and manual operation through stainless steel dash switchesMid-ship automatic bilge pumpWhale® Gulper macerator pumps for all fish boxesPotable Freshwater system with transom shower, cabin sink, and washdowns at anchor locker and midshipBlackwater Holding tank with pump outStainless steel props
Construction
Patented Michael Peters double Stepped V Ventilated Tunnel (SVVT) running surfaceLimited lifetime hull warranty3-year Limited component warrantyIntegrated aluminum mounting blocks molded into stringer system for gyroscope stabilizer100% composite construction – no woodTri-core composite transomHigh performance resin and barrier coatHull hand laid fiberglass construction with foam coreZero-flex fully foamed finished stringer system with Integrated chase tubesPremium gelcoat, Pure White, with UV inhibitorsFiberglass deck with Integrated gutter system and self bailing cockpitCustom nonskid walking surfacesFuel tanks (3) 5052 aluminumPlumbing and electrical systems factory tested
DECK AND HULL
Stainless steel 10″ pop-up cleats stern, mid-ship and bowStainless steel through hull fittings316 stainless steel hardwareIntegrated 4 step Res-Q ladderFinished hatch lids on both sides and include Stainless steel compression latches, lid seal gaskets and gutter drainsAluminum backing plates glassed in for seats, cleats, rails, rod holders and topsCustom Stainless steel rub rail
CONSOLE / HELM

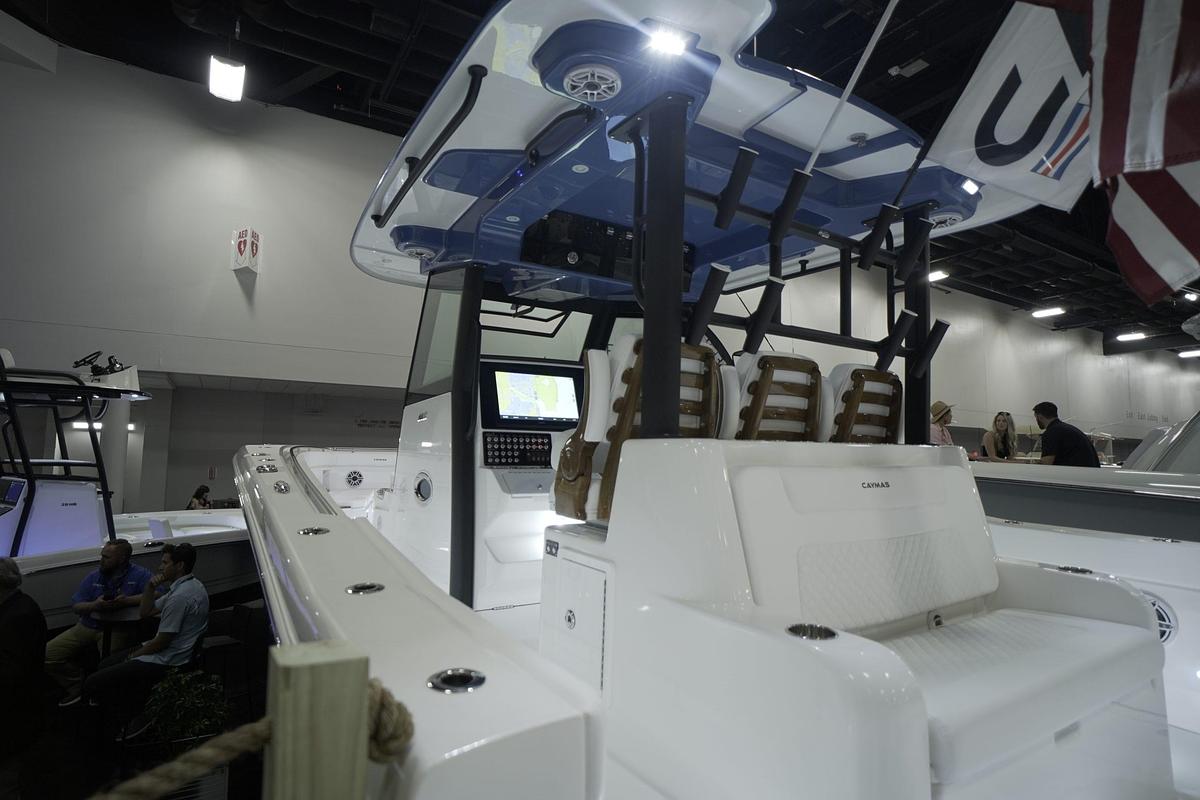

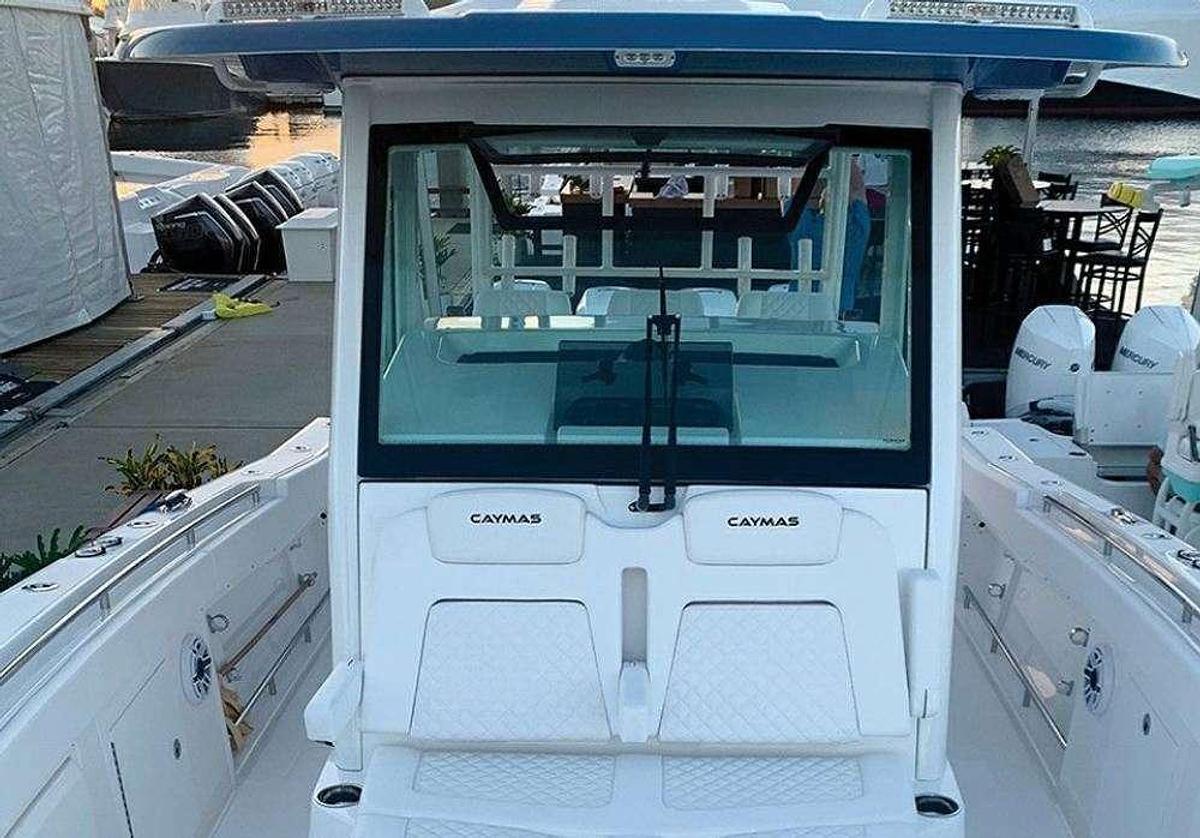

Fiberglass hardtop with integrated powder coated aluminum supports, aft and fwd facing Lumitec® spreader lights, (8) rocket launchers, overhead electronics pod with storage, molded in radar pod and (6) overhead lights, easy access pass through hatch, (4) speaker pods, and 3-sided custom glass windshield with electrically actuated windshield ventJL® Marine MM100 AM/FM, Bluetooth, NMEA 2000 stereo with (8) M6 6.6″ speakers and ampForward chaise lounge seating with armrests integrated into console with dry storage, 15 gal cooler, (2) large cup holders, grab handles, and (10) rod holdersLeaning post with (5) rod holders, (6) large cup holdersCustom port and starboard tackle storage systems with Plano® storage and leader holdersFiberglass entry door to console with heavy duty Stainless steel locking door hardwareEnclosed Electric porcelain head plumbed to Holding tank with overboard dischargeFiberglass sink vanity with retractable handheld wand and Corian® countertopsPowder coated console steps for easy access into consoleCustom rod storage inside consoleLarge cup holders on helm (4)Glove box at helm with USB charging outlet and 12v plugEdson® polished stainless comfort grip wheel with tilt and power knobDash accommodates (3) 17″ or (2) 22″ screensHinged console helm station for easy access to the backside of helm for electronics and riggingHelm seating with flip up bolsters and arm restsWindshield wiperElevated helm stationCompass, flush mounted at helmTeak flooring for inside of console and stair treads
COCKPIT
Recessed Stainless steel bow railSelf-bailing cockpit with (4) large cockpit scuppers and custom stainless steel Caymas branded cover plateStainless steel lid pistons on floor deck hatchesFriction hinges on-above deck hatches(6) GEMLUX® Stainless steel rod holders(7) GEMLUX® transom rod holdersUnder gunnel rod storageStarboard tackle storage with fire extinguisherPort Integrated trash can with fire extinguisherForward fender storage box with LED lightsInsulated transom storage boxes port and starboardCustom marine upholstery for console Chaise lounge, Integrated bow folding seats, coaming bolsters, and cockpit Cooler seatingRaw water washdown
General/Warranty
Lifetime limited warranty to the original ownerThree (3) year component warranty covers carpet defects, steering, aeration pumps, boat electrical system, fuel tanks, gauges and deck hardwareStructural hull warranty is transferable within first 10 years of manufacture to second owner.Read the Caymas Boats warranty for full details and specifics.
